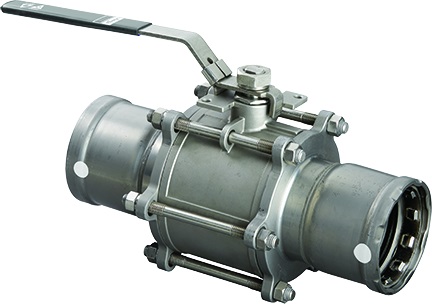

Viega MegaPress 316 FKM 3-piece ball valve
Smart Connect technology
  • For use with Sch. 5 to Sch. 40 stainless steel pipe
  • 316 stainless steel
  • Press connection
Components
FKM sealing elements, 304 locking handle
Model 6875.8XL
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

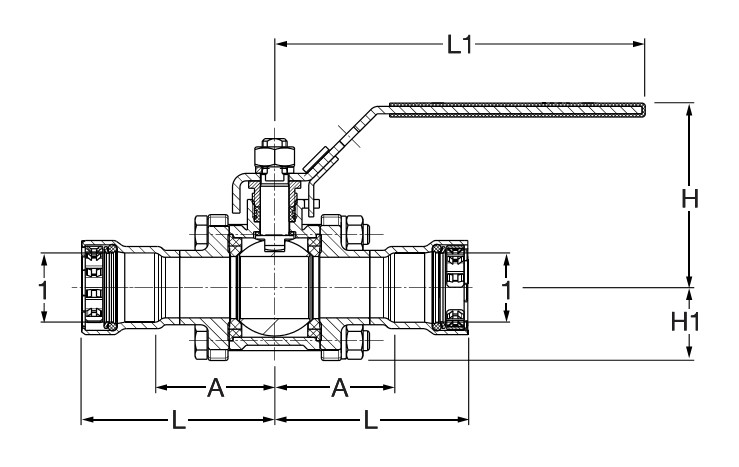

Item #

Size

A

L

L1

H

H1

Weight

N/A 2 1/2 N/A 3.81 in N/A 5.61 in N/A 11.09 in N/A 5.030 in N/A 2.28 in N/A 12.761 lb
N/A 3 N/A 4.45 in N/A 6.75 in N/A 11.09 in N/A 5.420 in N/A 2.69 in N/A 22.040 lb
N/A 4 N/A 4.38 in N/A 7.59 in N/A 13.05 in N/A 6.830 in N/A 3.79 in N/A 37.027 lb
