  • MegaPress_316_FKM_Ball_Valve_3_Piece,_P_x_P_-_Model_6875.8
  • MegaPress_316_FKM_Ball_Valve_3_Piece,_P_x_P_-_Model_6875.8_dimensional

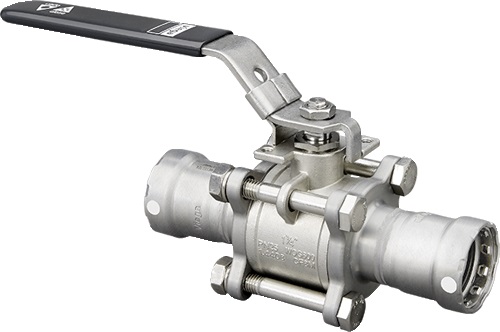

Viega MegaPress 316 FKM 3-piece ball valve
Smart Connect technology
  • For use with Sch. 5 to Sch. 40 stainless steel pipe
  • 316 stainless steel
  • Press connection
Components
FKM sealing elements, 304 locking handle
Model 6875.8
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Size

A

L

L1

H

H1

Weight

N/A 1/2 N/A 1.70 in N/A 2.80 in N/A 5.88 in N/A 2.850 in N/A 1.04 in N/A 1.728 lb
N/A 3/4 N/A 1.87 in N/A 3.06 in N/A 5.88 in N/A 2.930 in N/A 1.16 in N/A 2.367 lb
N/A 1 N/A 2.15 in N/A 3.54 in N/A 7.54 in N/A 3.330 in N/A 1.40 in N/A 3.917 lb
N/A 1 1/4 N/A 2.50 in N/A 4.35 in N/A 7.54 in N/A 3.570 in N/A 1.57 in N/A 5.697 lb
N/A 1 1/2 N/A 2.88 in N/A 4.79 in N/A 7.54 in N/A 3.890 in N/A 1.83 in N/A 8.309 lb
N/A 2 N/A 3.07 in N/A 5.07 in N/A 7.54 in N/A 3.890 in N/A 1.83 in N/A 8.538 lb
