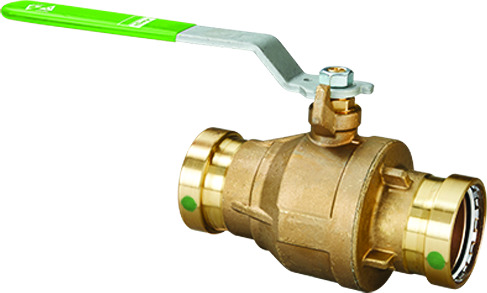

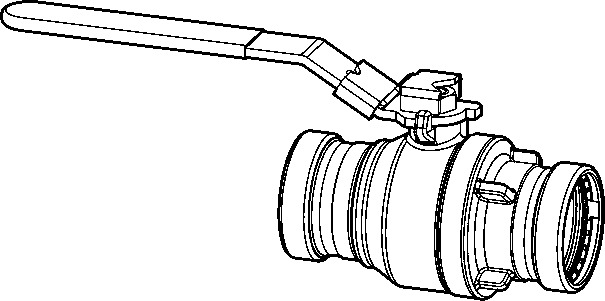

Viega ProPress ball valve
Smart Connect technology
Zero Lead
Smart Connect technology
Zero Lead
- For potable water applications
- Brass
- Press connection
- Full port
- Stainless steel ball, EPDM sealing elements
Unit of Measure
Size 1 |
N/A 2 1/2 |
Type |
N/A Ball Valve |
Body Material |
N/A Brass CW511L |
Seal Material |
N/A EPDM |
Seat Material |
N/A PTFE |
Stem Material |
N/A Brass CW509L |
Pressure [Max] |
N/A 250 psi |
Ball Material |
N/A CuZn39Pb0, 25 chromium plated |
Series |
N/A 2971.1XL |
Operating Temperature [Min] |
N/A 0 ºF |
Operating Temperature [Max] |
N/A 250 ºF |
Weight |
N/A 7.011 lb |

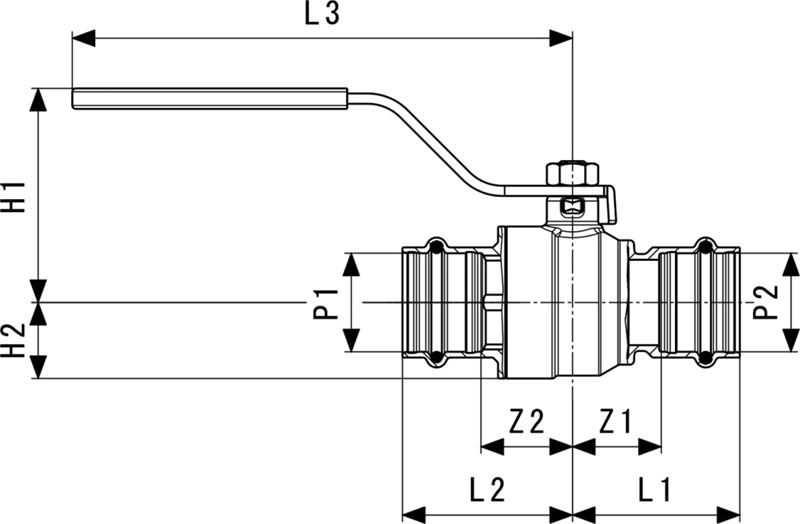

A |
N/A 7.47 in |
B |
N/A 3.91 in |
H |
N/A 4.02 in |
L |
N/A 11.22 in |
